ELM OBD Terminal

Features ELM OBD Terminal

Tool for Android devices - Version 2.1.7ELM OBD Terminal is an OBDII compatible app.
It can communicate with and the vehicle ECU via adapter ELM327 (or compatiple) on base of Bluetooth or Wi-Fi platform Connection settings 1.

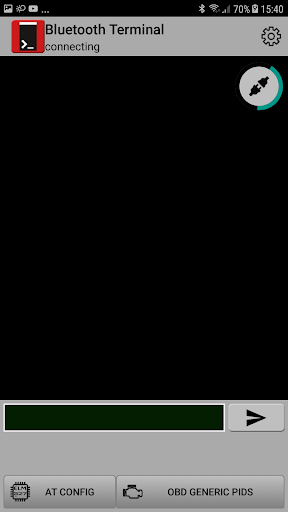

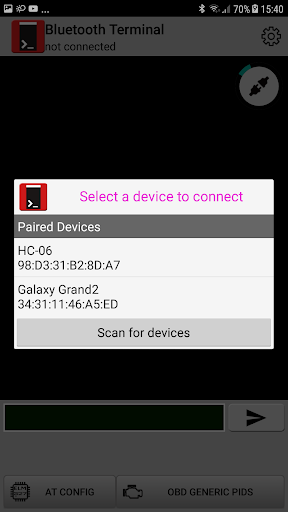

Bluetooth connection - select proper bluetooth device 2.
WiFi connection - select correct IP address and port Default values: IP address : 192.168.0.11 port: 35000 Resources 1.
Available list of AT commands 2.
Available list of generic OBDII PIDsSending command: The app can issue any ELM327 AT command or hexadecimal OBDII PIDs 1.
By selecting from available list of AT commands (OBDII PIDs) and tapping the Button Send.
2.
By directly typing the AT command (OBDII PIDs) and tapping the Button Send.

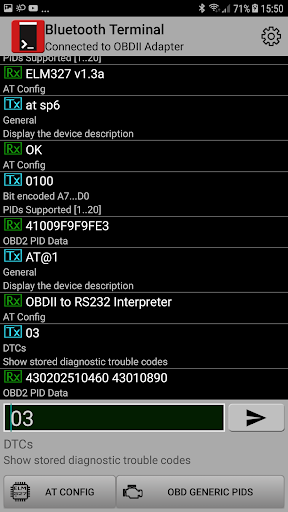

After sending the sent command (OBDII PID) is displayed on the screen with the icon of TXReceiving ResponseThe respond is displayed in the screen with icon of RX.
NoteThis app does not translate the responses from the cars ECU to human readable format.
So the user must translate them self these responses to readable format Most of generic OBDII PIDs are fetched from available list have support formulasSome AT command:ATZ - reset allAT WS - warm startAT@1- display the device desriptionAT@2 - display the device identifierAT H1 - set headers onAT H0 - set headers offAT SP n - set protocol to nAT DP - Describe the current protocolAT AL - allow long (>7 byte) messagesAT AR - automatic receiveAT AT0 - adaptive timing offAT AT1 - adaptive timing auto1AT AT2 - adaptive timing ato2AT BD - perform buffer dumpAT CAF0 - CAN auto format offAT CAF1 - CAN auto format on .
.
.Some Generic OBDII PIDs (hexadecimal format without part of 0x)03 - show stored diagnostic trouble codes04 - clear stored trouble codes and stored values07 - show pending trouble codes0A - show permanent diagnostic trouble codes0902 - VIN vehicle identification number0904 - calibration ID0100 - PIDs supported [1..20]010C - engine RPM - rpm, formula: (256*A + B)/4010D - vehicle speed - km/h, formula : A.
.
